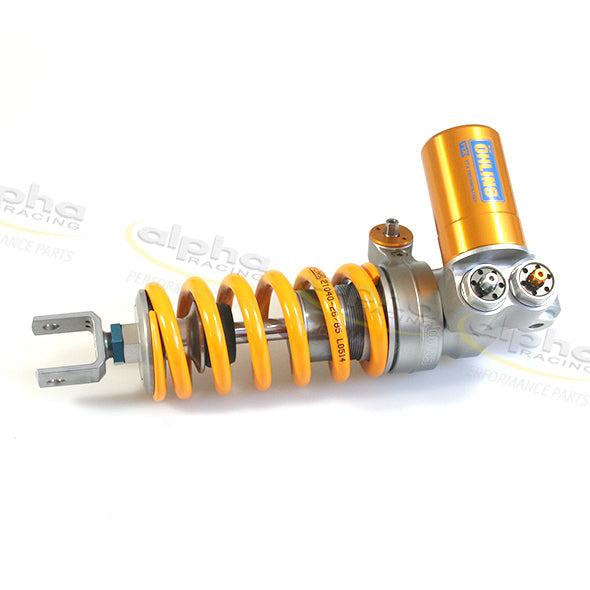

Öhlins rear shock TTX GP BM 365, BMW S 1000R 2014-2018
The TTX GP rear shock is the newest product for sport- and racing bikes. The new TTX Twin Tube technology is based on the latest experiences from Öhlins in Moto GP.
The adjustments of compression and rebound are improved by a new developed needle valve with optimized housing and changed flow restrictor characteristics. This allows better adjustment and more constant function.
Another modification is the new main piston. It improves traction and gives more control to the rider. TTX GP is the further development of TTX36 with the same advantages but optimized.
- Improved traction and grip
- Better ground contact feel
- Less hysteresis, improved dynamics of the shock absorber
- New design of the adjuster for rebound and compression
- Wide adjustment range
- Completely separated functionality for rebound and compression damping

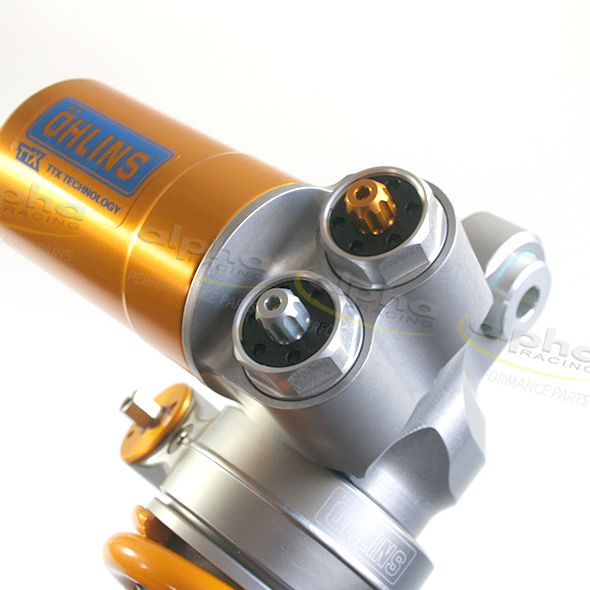

- All adjustments are done on the head of the shock absorber
Technical data
Length: 335 +4/-2 mm
Stroke: 62 mm
Rate N/mm: 75 N/mm
Mounted spring: 21040-21
Spring series: 21040-xx
Öhlins Part number: BM 365
Öhlins Type Code: T36PR1C1LB
Please supply rider's weight incl. clothing as well as preferred tire brand when ordering.
Weight: 2.88 kg
