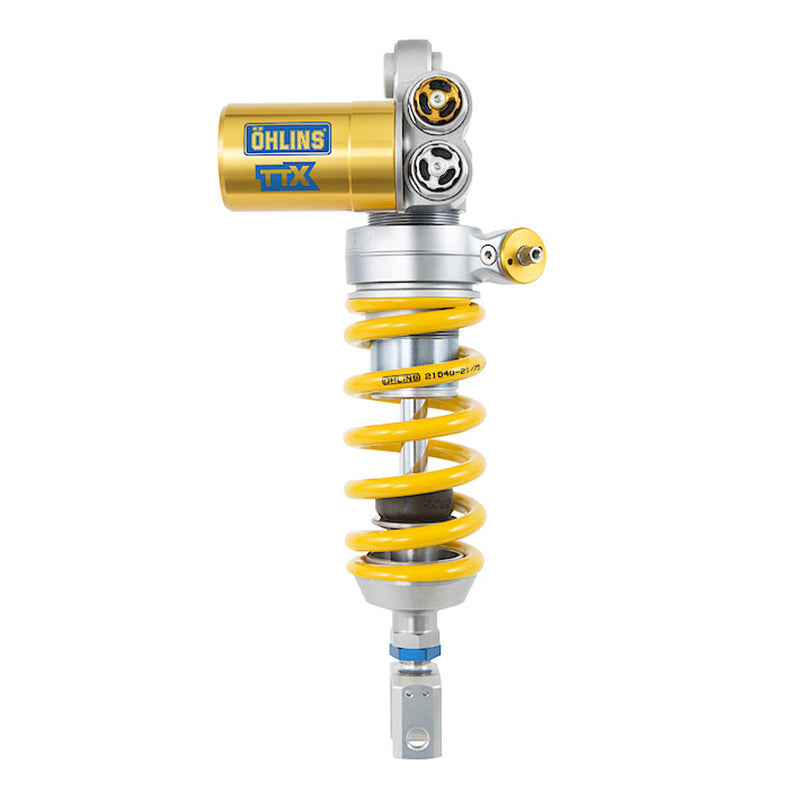

Öhlins rear shock TTX GP BM 468, BMW S1000RR 2015-2018

TTX GP Shock Absorber BM 468

Based on your bike’s performance, its price and available mounting space we have designed a shock that we think suits it, both when it comes to price and performance.

We start by choosing a type which we tailor-make for your specific bike. The basic setup, the design of the shim stacks and the calibration of the adjusters, is tested both on road and track. They are the results of true tests with your bike and no guesswork!

Öhlins manufactures more than 300 different shock absorber models, each model is tailor-made for one specific bike. The concept of all Öhlins products is not a secret, it is precision. Precision provides superior control of the damping force and the key to our success.

The TTX GP rear shock is the newest product for sport- and racing bikes. The new TTX Twin Tube technology is based on the latest experiences from Öhlins in Moto GP.
The adjustments of compression and rebound are improved by a new developed needle valve with optimized housing and changed flow restrictor characteristics. This allows better adjustment and more constant function.
Another modification is the new main piston. It improves traction and gives more control to the rider. TTX GP is the further development of TTX36 with the same advantages but optimized.

- TTX-technology - no cavitation risk
- Improved traction and grip
- Better ground contact feel
- Less hysteresis, improved dynamics of the shock absorber
- New design of the adjuster for rebound and compression
- Wide adjustment range
- Completely separated functionality for rebound and compression damping
- All adjustments are done on the head of the shock absorber

Weight: 2.880 kg

Delivery Scope

TTX GP rear shock

Note

Only for bikes without DDC.
