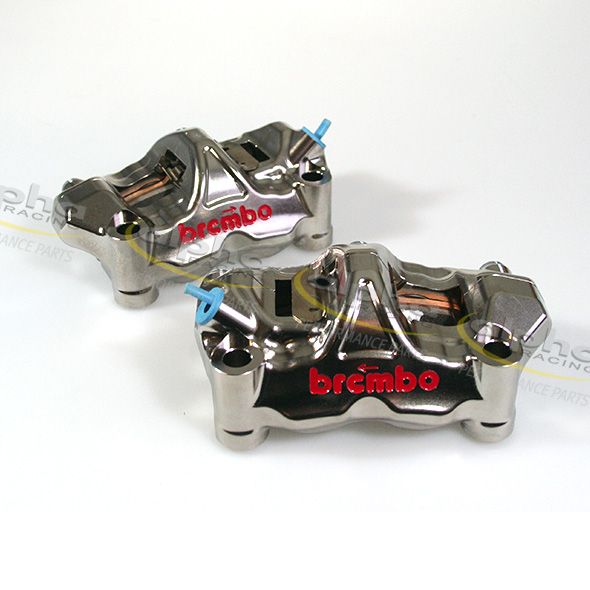

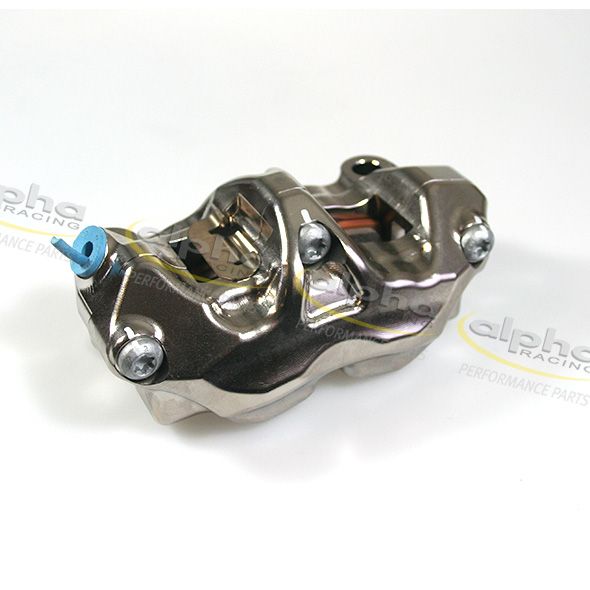

Brembo GP4-RX Radial Caliper Kit, 100 mm - BMW S1000RR 2009-2024

The body of this caliper is entirely CNC machined Aluminium and is made up of two pieces which are connected. Particular attention was dedicated in finding high braking power and stiffness values, obtained thanks to painstaking design, the use of carefully selected raw materials and ultra modern metal machining technology discoveries. In particular sophisticated topological optimisation software was used capable of pointing out to the designer the areas where excess material could be eliminated.

The hydraulics were the focus of a careful fine-tuning thanks to the use of four 32 mm diameter pistons which allowed a further increase in braking power and modularity specifications.

This model implements a surface finish borrowed from MotoGP. In fact, the nickel plating, in addition to giving it an aggressive and attractive look, allowed the already strict machining tolerances to be refined, all to the advantage of performance and operating precision.

The brake pads slide in specific guides, machined onto the body of the caliper itself, which have made it possible to eliminate brake pad pins.

The Brembo logo is embossed and hand painted in classic Brembo Red. The kit includes sintered brake pads which represent the absolute best quality available on the market today. The kit also contains an instruction manual, a set of Brembo stickers and extremely useful heat adhesives used in racing to control caliper operating temperature.

Brembo Racing GP4-RX Radial Brake Caliper Kit, CNC P4 32/32
- Aluminum, CNC machined
- Nickel coated
- Hole distance 100 mm
- for 34 mm brake rotor
- Offset 30 mm
- 4 pistons, aluminium with 32 mm diameter
- Anti-vibration spring for the brake pads
- High performance sintered brake pads included
- Brake line fitting M10x1
- hand-painted, red Brembo logo

Brembo part number: 220B01020

Weight:
1.850 kg (complete kit)
705 g/caliper (without brake pads)

Delivery Scope

Brake caliper right
Brake caliper left
4x Brake pad
2x Bleeding screw with dust cap
2x Thermal tape

Note

Brake pads included.
Not compatible with ABS system.
Do not use with 30 mm brake rotor.

For racetrack use only.

Fits
